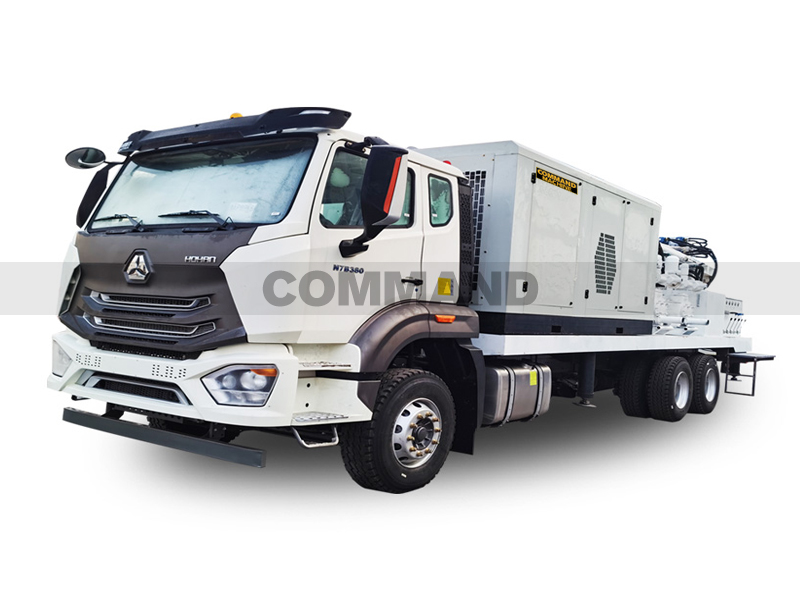

CDC-600K hydraulic top head drilling rig

A.CHASSIS

Code

Name

Model

Parameter

Remarks

A01

Truck chassis

Special Purpose for Engineering  truck

Manufacturer：
SINO TRUCK
Driving form：6×4
371HP

B.Drilling tower, Second floor chassis

Code

Name

Model

Parameter

Remarks

B01

Drilling tower

Drill tower load:50T
Operation：Two hydraulic support cylinders
Drill tower height：8M

B02

Pull up-Pull down cylinder

Pull down:12T
Pull up: 30T

B03

Outrigger cylinder

outrigger oil cylinder

Brace：Four hydraulic leg cylinders
Equipped with hydraulic lock to prevent leg retraction

C. Drilling rig power

Code

Name

Model

Parameter

Remarks

C01

Diesel engine

Special diesel engine for drilling rig

Rated power:132KW

maximum power：153KW
revolutions：1500RPM

Upgrade according to drilling rig construction characteristics

D.Tool hoist

Code

Name

Model

Parameter

Remarks

D01

Hoist

ZYJ2B

单绳拉力Single rope pull up：2T

E. Rotation form
hydraulic power head

Code

Name

Model

Parameter

Remarks

E01

Power head

Torque：11000 NM
Revolutions：0-90 RPM

F.Other Parts and Components

Code

Name

Model

Parameter

Remarks

F01

Foam pump

B-36EX1

Flow：42L/MIN
Pressure：4MPA
Revolutions：660R/MIN
Improving the up-and-down efficiency of drilling cuttings, cooling and lubricating the impactor

G.operating system

Code

Name

Model

Parameter

Remarks

G01

Control box

Integrated console
Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
Instrument: drilling tool weight gauge, system pressure gauge, etc.

H.Air compresoor

Code

Name

Model

Parameter

Remarks

H01

Air compressor

pressure：2.4 MPA

Air volume：29 m³/MIN

I. Mud pump

Code

Name

Model

Parameter

Remarks

H01

泥浆泵
Mud pump

1100 L/M
5 MPA
