Mechanical top head drilling rig

    -->

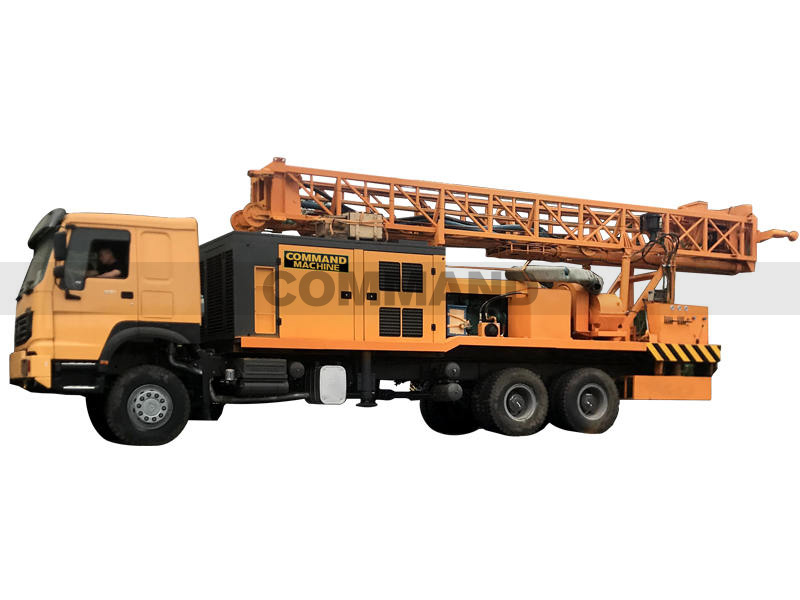

    CDC-350JK Mechanical top head drilling rig

    Application :
    for drilling water well

    Introduction

    "Depth:300M
    Aperture:100MM-1800MM
    Dimensions;12000mm×2500MM×4150MM
    Total Weight:27500KG
    Drilling technology can be used: mud positive circulation, DTH-hammer, air lift reverse circulation, Mud DTH-hammer."



    Parameter

    A. CHASSIS

    Code

    Name

    Model

    Remarks

    A01

     Truck chassis


    See the quotation for details
    Can be selected according to customer requirements
    If we can have our own chassis, we can also customize it according to the customer's chassis


    SINOTRUK

    DONGFENG

    B.Drilling tower, Second floor chassis

    Code

    Name

    Model

    Parameter

    Remarks

    B01


    Drilling tower


    Retractable

    Drill tower load:30T
    Operation:Two hydraulic support cylinders
    Drill tower height:7M


    B02


    Pull up-Pull down cylinder



    Pull down:11T
    Pull up:20T


    B03


    Outrigger cylinder

    Brace:Four hydraulic leg cylinders
    Equipped with hydraulic lock to prevent leg retraction


    C.Drilling rig power

    Code

    Name

    Model

    Parameter

    Remarks

    C01

    Diesel engine

    Special diesel engine for drilling rig

    Rated power:132KW
    Maximum power:153KW
    Revolutions:1500RPM
    Upgrade according to drilling rig construction characteristics


    D.Tool hoist

    Code

    Name

    Model

    Parameter

    Remarks

    E01

    Hoist

    ZYJ2B

    Single rope pull up:2T


    E.Rotation form
    Hydraulic power head

    Code

    Name

    Model

    Parameter

    Remarks

    F01

    Power head



    Torque:9500NM   Revolutions:0-90 RPM


    G.Operating system

    Code

    Name

    Model

    Parameter

    Remarks

    G01

    Control box


    Integrated console
    Lifting and boring tower, outrigger cylinder, lifting, lowering, power head , etc.
    Instrument: drilling tool weight gauge, system pressure gauge, etc.



    H.Air compressor + mud pump

    Code

    Name

    Model

    Parameter

    Remarks

    H01

    Air compressor



    PRESS:2.4MPA                          AIR VOLUME:29 m³/MIN


    H02

    Mud pump

    BW600/30

    Type:
    Double Cylinder Reciprocating Double-acting Piston Pump
    Maximum pressure:3MPA
    Cylinder liner diameter:130MM
    MAXIMUM DISPLACEMENT:720L/MIN
